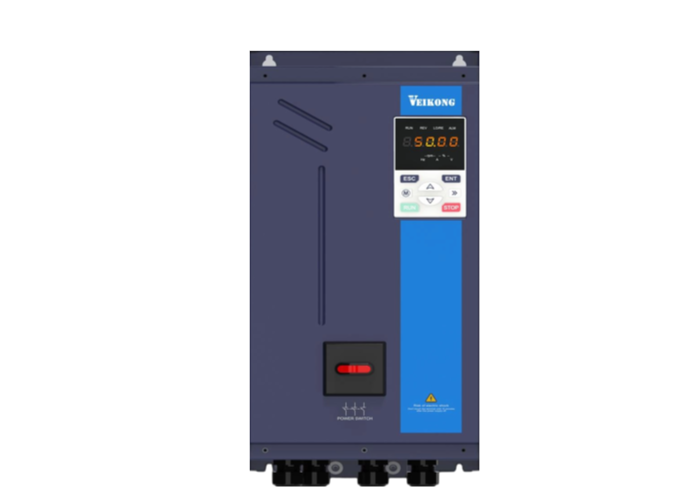

VEIKONG VFD510 IP55 High Protection Vector Frequency Inverter 4kW~45kW

Lieu d'origine	Chine
Nom de marque	VEIKONG
Certification	CE IEC
Numéro de modèle	VFD510
Quantité de commande min	1
Détails d'emballage	Carton et boîte en bois
Délai de livraison	3 jours, dépendez de la quantité de commande
Conditions de paiement	LC, D/A, D/P, T/T, Western Union
Capacité d'approvisionnement	15000pcs par mois

Détails sur le produit

Communication	Modbus, CANopen, Profinet	Garantie	24 mois
Adaptation de l'altitude	0 à 3000 m	Réponse à la vitesse	5 Hz (V/F), 20 Hz (SVC), 50 Hz (VC)
Automate simple intégré	4 unités de retard, 4 unités de comparaison et 4 unités logiques pour simplifier le câblage des péri	Plage de vitesse	1:100 (V/F), 1:200 (SVC), 1:1000 (VC)

Description de produit

1. Models

Full Series: VFD510 IP55 Vector Control Frequency Inverter

Power Range: 4.0kW ~ 110kW

Main Models (380V Three-phase)

VFD510-4R0-T4B: 4kW
VFD510-5R5-T4B: 5.5kW
VFD510-7R5-T4B: 7.5kW
VFD510-011-T4B: 11kW
VFD510-015-T4B: 15kW
VFD510-018-T4B: 18.5kW
VFD510-022-T4B: 22kW
VFD510-030-T4(B): 30kW
VFD510-037-T4(B): 37kW
VFD510-045-T4(B): 45kW

Voltage Specifications

Single/Three-phase 220V: 200V~240V
Three-phase 380V: 380V~480V

2. Core Performance

Environmental & Protection Performance

Protection Grade: IP55, effectively resistant to dust, water mist and oil contamination with excellent corrosion resistance
Ambient Temperature: Standard design for 50℃ working environment; Normal operating range: 10℃ ~ 40℃, maximum ambient temperature up to 50℃
Voltage Fluctuation Tolerance: -15% ~ +10%
Input Frequency: 50Hz/60Hz, allowable fluctuation: ±5%
Altitude Adaptation: 0~3000m. Derate 1% of rated current per 100m above 1000m
Cooling System: Independent air duct design, large heat dissipation aluminum fins and IP65 cooling fan for reliable heat dissipation
Cable Connector: IP68 nylon cable gland, featuring waterproof, anti-aging and high toughness

Control & Operation Performance

Applicable Motors: Asynchronous motor, Permanent Magnet Synchronous Motor (PMSM)
Control Modes: V/F Control, Sensorless Vector Control (SVC), Speed Sensor Vector Control (VC)
Speed Range: 1:100 (V/F), 1:200 (SVC), 1:1000 (VC)
Speed Control Accuracy: ±0.5% (V/F), ±0.2% (SVC), ±0.02% (VC)
Starting Torque: 150% rated torque @ 0.5Hz (V/F), 150% rated torque @ 0.25Hz (SVC), 150% rated torque @ 0Hz (VC)
Overload Capacity: 150% rated current for 60s and 180% rated current for 8s for heavy load; 120% rated current for 60s for light load
Frequency Range: 0.00~500.00Hz (V/F), 0.00~200.00Hz (SVC), 0.00~400.00Hz (VC)
Speed Response: 5Hz (V/F), 20Hz (SVC), 50Hz (VC)

Reliability Performance

Adopts professional thermal simulation and strict cyclic temperature rise & overload tests
Passes complete EMC, lightning surge, electrostatic discharge and aging tests
Conformal coating process is applied for enhanced anti-corrosion capability

3. Main Functions

Safety & Protection Functions

Built-in standard STO (Safe Torque Off) function
Comprehensive protection against over-temperature, over-current, over-voltage, under-voltage, overload and other faults

Operation & Process Functions

16-stage multi-speed program operation with multiple cycle modes
Built-in PID control for process closed-loop regulation
Deceleration over-excitation and under-voltage stall protection
Speed tracking start for smooth and impact-free startup of rotating motors
Auto energy-saving mode, ideal for fan and pump applications
Independent sleep and wake-up function
Support free switching between two sets of motor parameters
Minor fault non-stop operation

Logic & Auxiliary Functions

Integrated simple PLC: 4 delay units, 4 comparator units and 4 logic units to simplify peripheral wiring
Support motor phase sequence adjustment via software without wiring modification
Parameter backup & restore, complete fault record and automatic fault retry

Communication & I/O Interfaces

Standard Communication: Modbus
Optional Extended Communication: Modbus-TCP, CANopen, Profinet
Optional encoder cards for incremental encoder and resolver
Rich digital & analog I/O terminals, equipped with high-speed pulse input and output
Optional I/O expansion card, compatible with PT100, PT1000 and other temperature sensors

Braking Configuration

Built-in braking unit for SIZE C and smaller models; braking unit is optional for SIZE D and above

4. Application Industries

Designed for harsh working conditions with heavy dust, oil mist and water mist. Widely used in mining, metallurgy, building materials, machinery manufacturing, oil extraction, sewage treatment, hydraulic engineering and other fields.

5. After-sales Service

24-month quality warranty is provided. We supply free repair parts for quality-related failures within the warranty period.
Professional technical team offers global online technical support to solve various application problems.
